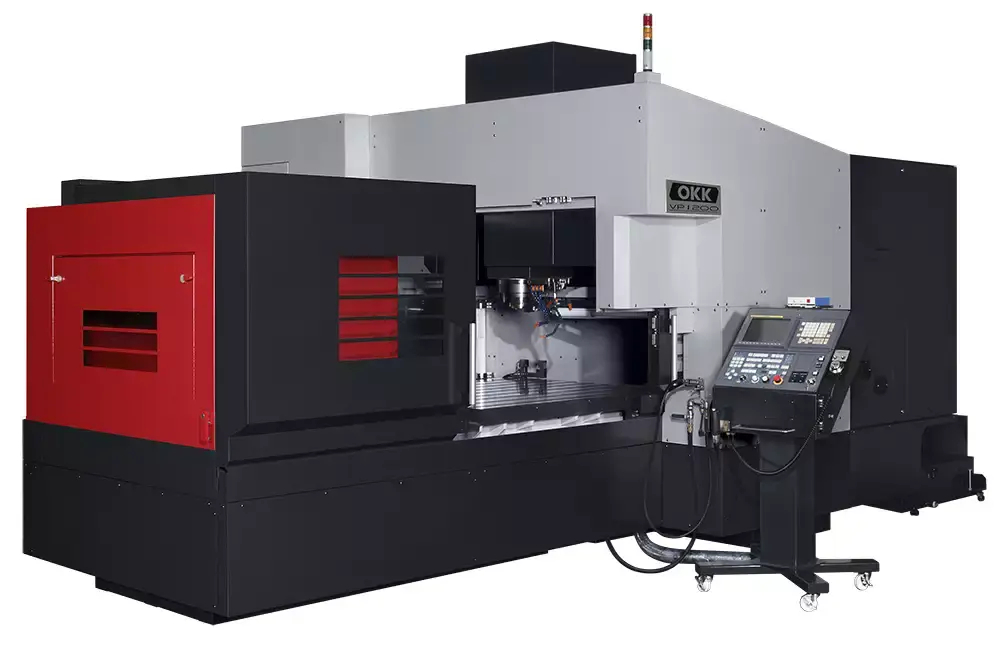

OKK VP1200

Features And Benefits

• Highly rigid linear roller guide
• Double-anchoring type ball screws
• Coolant through spindle preparation
• Coil-type chip conveyor
• Excellent Chip Disposal, accessibility with compact-sized machine
• Space saving design for economical use of floor space

Technical Data

Travel

• X-Axis Travel - 63.0" (1600mm)
• Y-Axis Travel - 51.2" (1300mm)
• Z-Axis Travel - 18.1" (460mm)
• Table Top to Spindle Nose - 3.9" - 22.1" (100mm - 560mm)

Table

• Table Work Surface Area - 63.0" x 51.2" (1600mm x 1300mm)
• Table Load Capacity - 4400 lbs (2000 kg)

Feed Rate

• Rapid Traverse Rate X/Y - 1890 in/min (48 m/min)
• Rapid Traverse Rate Z - 1417 in/min (36 m/min)
• Cutting Feed (X/Y/Z) - 1417 in/min (36 m/min)

Spindle

• Spindle Power - 50/25 HP
• Spindle Speed - 12,000 rpm
• Spindle Taper - CAT40

Tools

• Standard Number of Tools - 40 (OP: 60/80/120)
• Maximum Tool Weight - 15.4 lbs (7 kg)
• Maximum Tool Length - 11.8" (300 mm)
• Maximum Tool Diameter - ø 3.2" (82 mm) / ø 4.9" (125 mm) without adjacent tool
• Tool Changing Time (Tool to Tool) - 1.2 sec

General

• Machine Weight - 41,877 lbs (19000 kg)
• Machine Control - FANUC F31i-B
