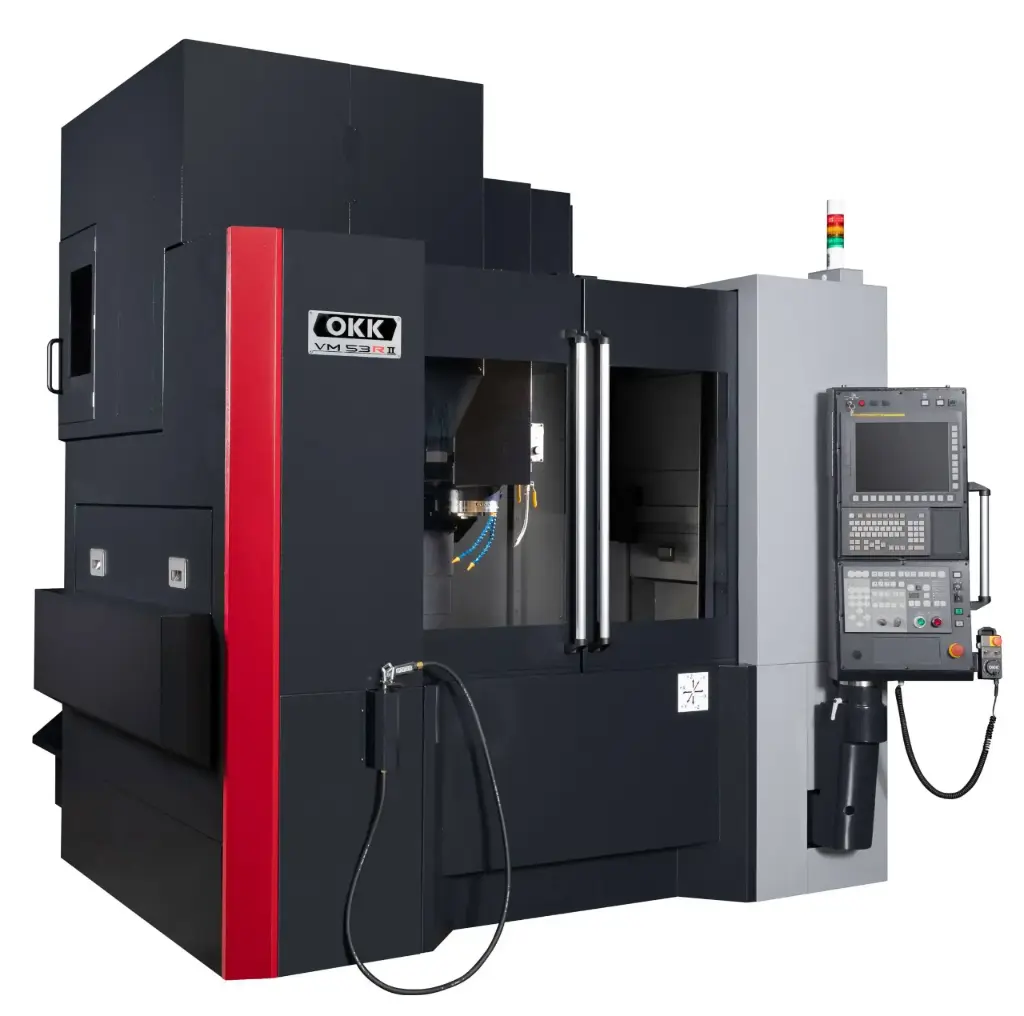

OKK VM53RII

Features And Benefits

• Expanded working area
• Improved accessibility
• Increased main body rigidity
• Box way construction
• Space saving design for economical use of floor space
• Coil-type chip conveyor

Technical Data

Travel

• X-Axis Travel - 41.3" (1050mm)
• Y-Axis Travel - 20.8" (530mm)
• Z-Axis Travel - 20.1" (510mm)
• Table Top to Spindle Nose - 5.9" - 26.0" (150mm - 660mm)

Table

• Table Work Surface Area - 41.3" x 22.1" ( 1050mm x 560mm)
• Table Load Capacity - 1764 lbs (800 kg)

Feed Rate

• Rapid Traverse Rate X/Y - 1181 in/min (30 m/min)
• Rapid Traverse Rate Z - 787 in/min (20 m/min)
• Cutting Feed (X/Y/Z) - 787 in/min (20 m/min)

Spindle

• Spindle Power - 25/20 HP (Option 40HP)
• Spindle Speed - 8,000 rpm (Option 12,000 rpm)
• Spindle Taper - CAT50 (Option CAT40)

Tools

• Standard Number of Tools - 30 (Option 40)
• Maximum Tool Weight - 44 lbs (20 kg)
• Maximum Tool Length - 15.0" (380 mm)
• Maximum Tool Diameter - ø 4.06" (103 mm) / ø 7.87" (200 mm) without tool in adjacent pots
• Tool Changing Time (Tool to Tool) - 2.0 sec (Speed is changeable for heavy-weight tools)

General

• Machine Weight - 17,600 lbs (8,000 kg)
• Machine Control - FANUC F31i-B Plus
