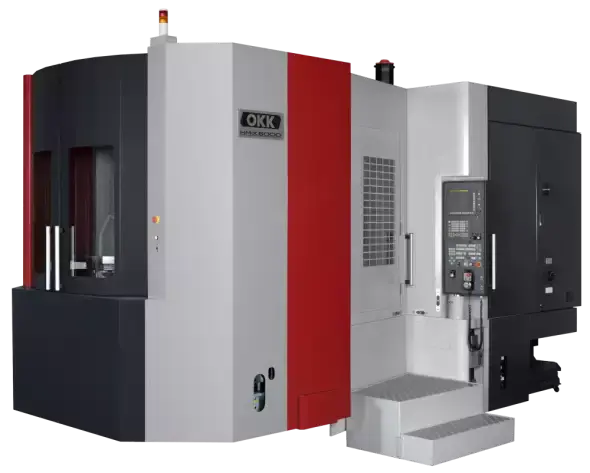

OKK HM-X6000

Features And Benefits

• New innovative trunnion table
• Direct-turn APC
• Heavy load capacity linear roller guides
• Core chilled pre-tensioned and double-anchored ball screws
• High load capacity feed motors
• Space saving design for economical use of floor space

Technical Data

Travel

• X-Axis Travel - 41.3" (1050mm)
• Y-Axis Travel - 35.4" (900mm)
• Z-Axis Travel - 32.3" (820mm)
• A-Axis Travel:－110° to +20°
• B-Axis Travel - 360°
• Table Top to Spindle Center: -270mm to 730mm

Table

• Table Size - Square - 600 mm (23.6 in.)
• Table Load Capacity - 1433 lbs (650kg)

Feed Rate

• Rapid Traverse Rate (X/Y/Z) - 2953 in/min (75 m/min)
• Cutting Feed (X/Y/Z) - 1574 in/min (40 m/min)

Spindle

• Spindle Power - 60/35 HP
• Spindle Speed - 12,000 rpm (OP: 8,000 rpm Three Geared Head 923ft-lbs)
• Spindle Taper - CAT50

Tools

• Standard Number of Tools - 60 (OP: 116/176/236)
• Maximum Tool Weight - 55 lbs (25 kg)
• Maximum Tool Length - 19.7" (500 mm)
• Maximum Tool Diameter - ø 4.5" (115 mm) / ø 10.6" (270 mm) without tool in adjacent pots
• Tool Changing Time: Cut to Cut - 4.2 sec (Speed is changeable for heavy-weight tools)

General

• Machine Weight - 44,100 lbs (20,000 kg)
• Machine Control - F31i-B5
