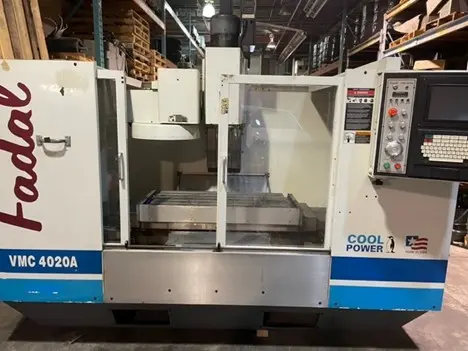

Fadal 4020A
GENERAL SPECIFICATIONS
- Work Surface (Table Size): 48" X 20"
- Maximum Load: 1,500 LBS
- X-Axis (Longitudinal): 40"
- Y-Axis (Cross): 20"
- Z-Axis (Vertical): 20"
- Spindle To Table Distance 4" - 24"
- Throat Distance: 20"
- Spindle Taper: CAT 40
- Spindle Speeds: 7,500 RPM 2 Range Spindle
- Rapid Traverse Rate (X/Y 900 IPM) (Z- 700) IPM
- Maximum Cutting Feed Rate: .01-250 ipm
- Tool Changer Style: Carousel
- Tool Changer Capacity: 21 Stations
- Max Tool Weight: 15 LBS
- Spindle Drive 15 HP
- Weight: 10,500 LBS
- Power Requirement: 220 Volt 3 Phase 45 AMP
INCLUDES: Fadal’s Exclusive CNC 88HS Controller, 7,500
RPM Spindle Drive, 21 Position CAT 40 Tool Changer, Box Way Z-Axis, Rigid
Tapping
All Used Machine sales will default to "In-Store Pickup" for shipping. Once the order is placed, we will reach out to you to determine how you would like to proceed with shipping.
